Features

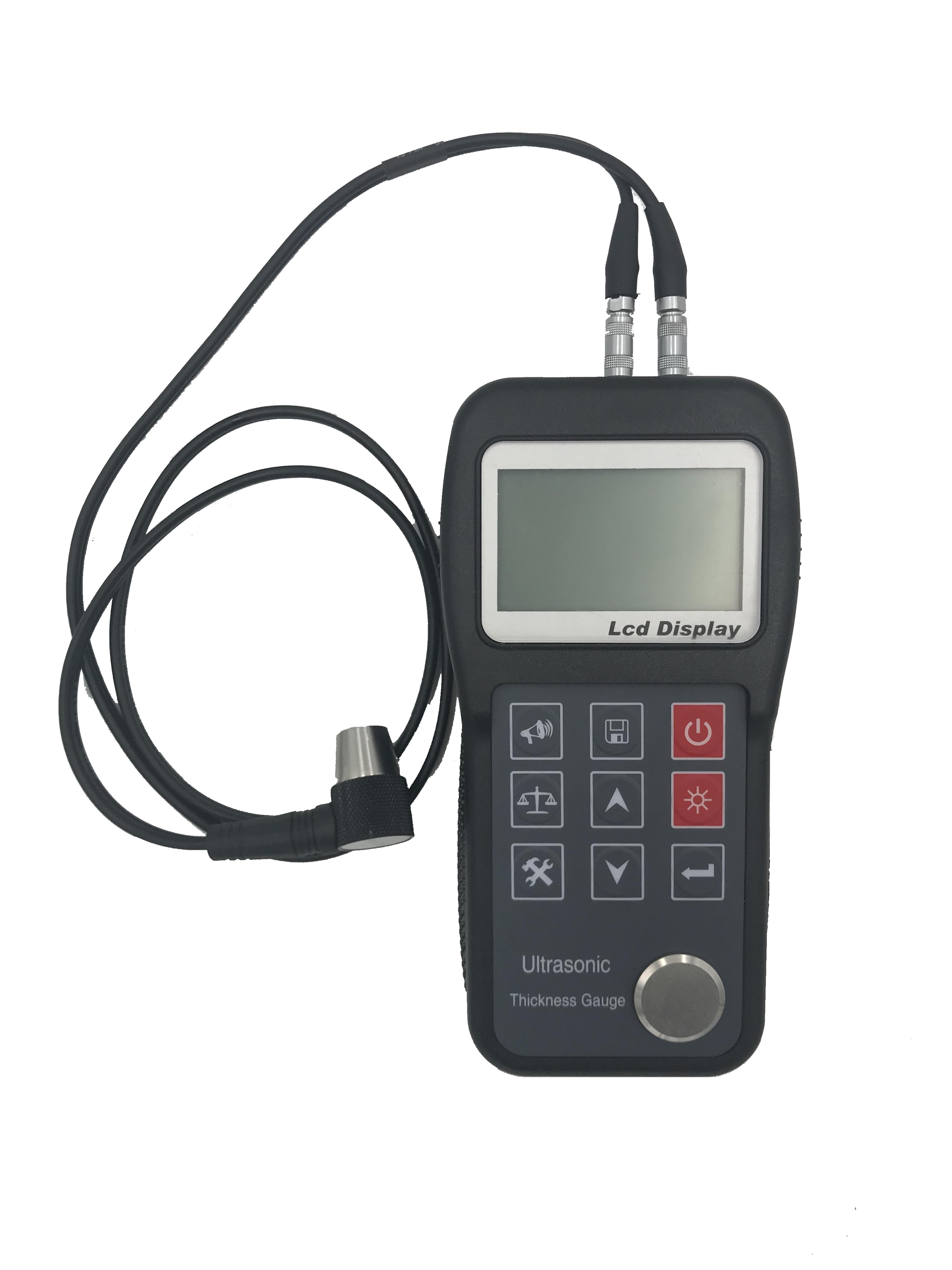

-  Easy to use handheld thickness gauge

-  Suitable for most metallic and non-metallic materials

-  Display current thickness or minimum thickness (menu selectable)

-  Upper-lower limits setting and sound alarm

-  Memory for 500 stored values

-   Two point calibration

-   Display resolution 0.1mm/0.01mm selectable

-  Display in mm or inch

-  LCD display with adjustable backlight

-  Low battery indicator

-  RS232 output for data transfer


Specifications

Measuring Range(Steel)

0.7mm-225.0mm with 5MHz Transducer

5.0mm-300.0mm with 2MHz Transducer
Operating Temperature-10 -- 60°C
Lower Limit Steel PipesΦ20mm*3.0mm
Display Resolution(Selectable)0.1mm/0.01mm or 0.01/0.001inch
Data OutputRS232 Output for Printer or PC
Measuring Accuracy±1% thickness+0.1mm
Sound Velocity1000m/s—9999m/s
Power Supply2pcs AA Batteries 1.5V
Battery Life100 hours without backlight
Dimensions152mm*74mm*35mm
Weight370g
