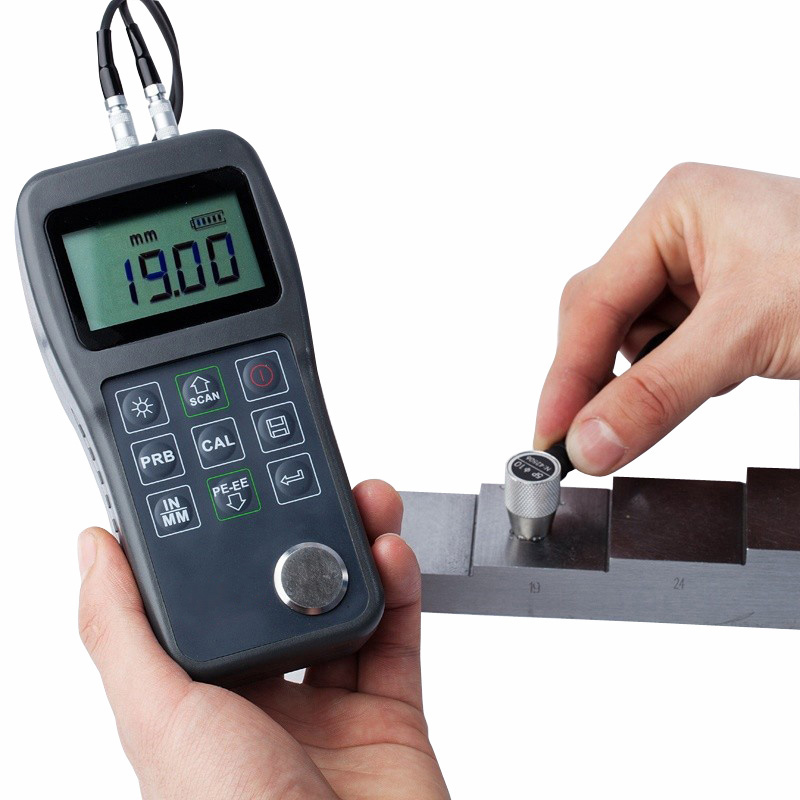

Main Functions
- Multi-mode: Pulse-Echo mode and Echo-Echo mode.
- Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.
- Transducer models are available for special application, including for coarse grain material and high temperature applications.
- Probe-Zero function, Sound-Velocity-Calibration function
- Two-Point Calibration function.
- Single point mode and Scan mode. Seven measurements readings per second in single point mode, and sixteen per second in Scan Mode.
- Coupling status indicator showing the coupling status.
- Units: Metric/Imperial unit selectable.
- Battery information indicates the rest capacity of the battery.
- Auto sleep and auto power off function to conserve battery life.
- Optional software to process the memory data on the PC.
Specifications
| Display | 4.5 digits LCD with EL backlight |
| Range | Pulse-Echo mode: (0.65-600)mm (in Steel). Echo-Echo mode: (3-30)mm. |
| Sound Velocity Range | (1000-9999) m/s |
| Resolution | 0.1mm/0.01mm |
| Accuracy | ±（0.5%Thickness+0.01）mm, depends on materials and conditions |
| Memory | 20 files (up to 99 values for each file) of stored values |
| Power Source | Two “AA” size, 1.5 Volt alkaline batteries. 100 hours typical operating time (EL backlight off). |
| Communication | USB1.1 |
| Dimensions | 150mm×74mm×32 mm |
| Weight | 245g |
| Operating Temperature | －20℃-＋60℃ |
| Storage Temperature | -30℃-＋70℃ |
| Relative Humidity | ≤90％ |
