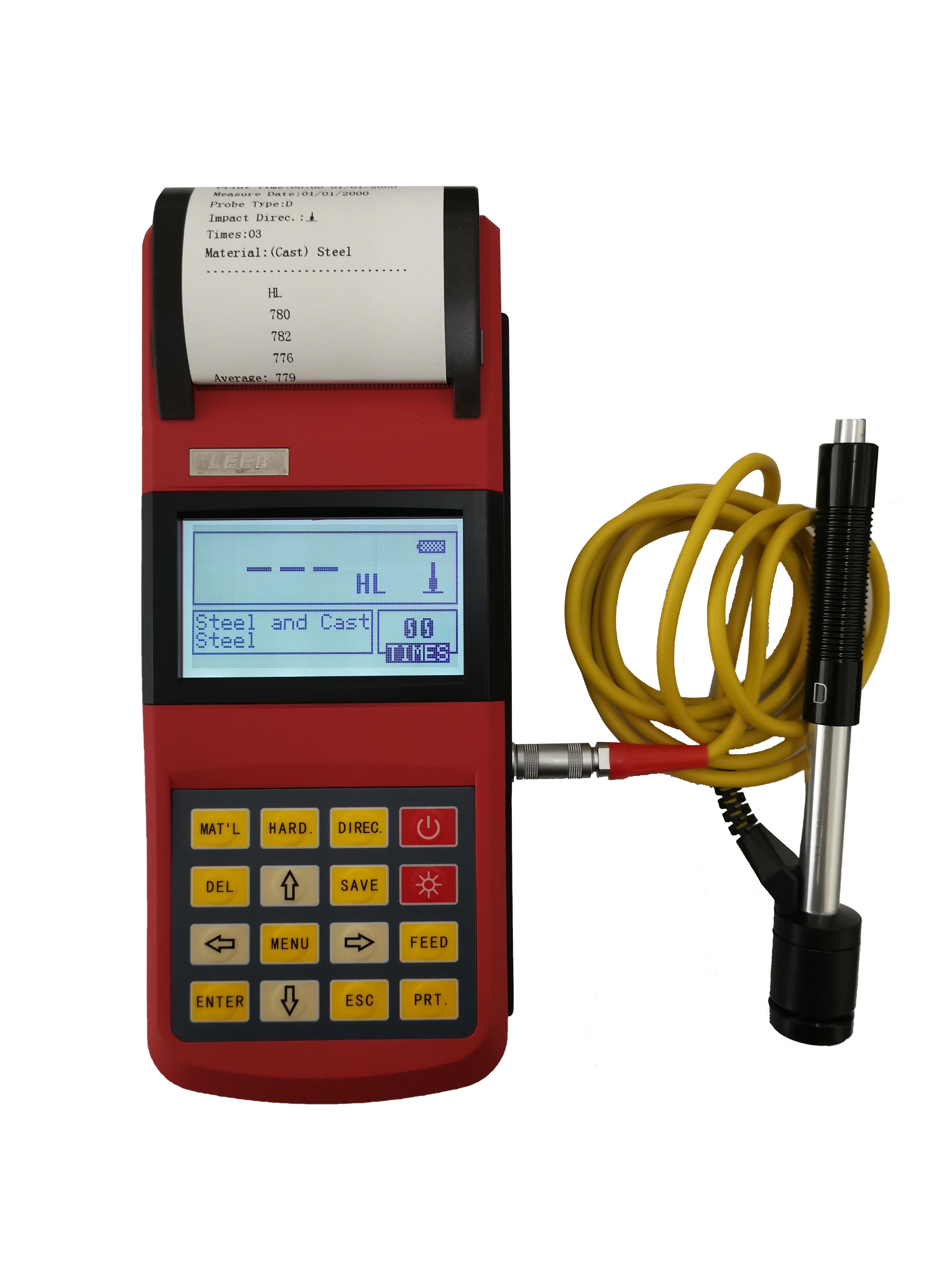

DGT-HT580 (6).jpg

Advantages

- Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL and three types of strength values immediately.

- Large 3 inch screen LCD, showing all functions and parameters. With EL background light.

- Seven impact devices are available for special application. Automatically identify the type of impact devices, and with the user calibration function.

- Test at any angle, even upside down.

- Large memory could store 500 groups (Relative to average times 32-1) information including single measured value, mean value, impact direction, impact times, material and hardness scale etc.

- Battery information showing the rest capacity of the battery and the charge status.

- Original imported high speed thermal printer support the immediate printing function.  It can save data permanently.

- NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 150 hours (EL off and no printing).

- Auto power off to save energy.

- Excellent after-sale service system for high quality products two years’ guarantee and all life maintenance. Easy to buy and comfortable to use.

Main Application

- Die cavity of molds

- Bearings and other parts

- Failure analysis of pressure vessel, steam generator and other equipment

- Heavy work piece

- The installed machinery and permanently assembled parts

- Testing surface of a small hollow space

- Material identification in the warehouse of metallic materials

- Rapid testing in large range and multi-measuring areas for large-scale work piece

Specifications

Measuring Range
HLD(170-960)HLD
Measuring Direction0°-360°
Hardness ScaleHL、HB、HRB、HRC、HRA、HV、HS
Displaysegment LCD
Data Memory500 groups max.(relative to impact times 32-1)
Printing Paper width is (57.5±0.5)mm, diameter is 30mm
Battery Pack 6V NI-MH
Battery Charger9V/500mA
Continuous Working Periodabout 150 hours(With backlight off, no printing)
Communication InterfaceUSB2.0
Dimensions212mm×80mm×32mm
