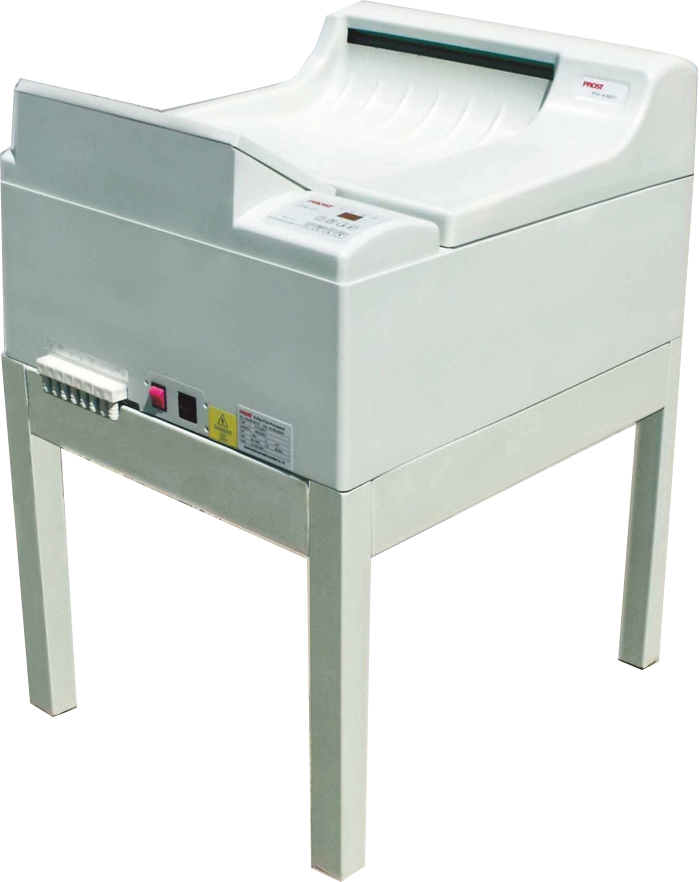

- The densely arranged roller set ensures the delivery of film of all sizes.

- Timed operation reduces crystallization of the roller surface and effectively activates the circulatory system.

- Adjustable direction bridge, no film jamming.

- Adjustable spacing, the distance of the roller shaft group structure, to avoid the indentation of different film base film.

- The professional prototype drying air duct system allows the film to be evenly exposed on both sides of the film,

avoiding water marks on the film.

- Microcomputer program control, stable and reliable performance.

- The large digital display panel is atmospheric, concise, and based on all functions. It can be recalled, viewed,

debugged, and easily viewed with a single click.

Technical Specifications

Film Size
Minimum 60×100mm/Maximum 360×2000mm
Developing Time6-14min.(1 min step adjusting)
Developing Amount8-18PCS/hr(14×17inch)/30-72PCS/hr(80×300mm)
Power SupplyAC 220V/50Hz/8.8A
CapacityDeveloper 5.2L / Fixer 5.2L / Water 5.2L
Developing Temperature20-40°C
Fixing Temperature20-40°C
Drying Temperature20-70°C
Developer and Fixer ReplenishingAutomatic/Manual Replenishing(50-500ml/m2)
Water Consumption4L/min
Water temperatureNormal
Dimension800×580×420mm
Net Weight40Kg
